Our production

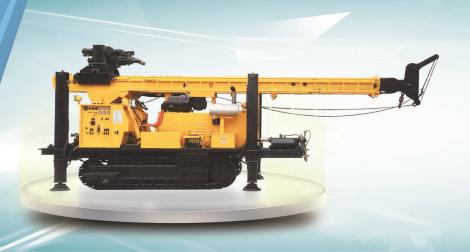

Name:KDJ1000 DTH Drilling Rig
Working pressure (Mpa):1.05-2.46
Drilling diameter (mm):140-450
Feeding stroke:5500
Gradeability (°):15
Drilling depth:100
Rotation speed (rpm):0-80
Max. rotation torque(N.m):27500
Engine type:Water-cooled six-cylinder EFI diesel engine
Max. lifting force(t):45
Machine weight (kg):18000
Dimension (mm):9160×2300×3400
Engine:240(179KW)

Products Description

KDJ1000, multi-functional crawler well drilling rig is a new type and an efficient drilling rig.

Mainly used for drilling water well, monitoring well, dewatering well, relief well, the gas layer mining and other probe holes project.

The maximum drilling depth is 1000 meters and the drilling diameter ranges from 140mm to 450mm.

Feature

l The Rotary motor is with rotation speed q-80rpm stepless adjustable and the output torques is 27500Nm.

l 179KW engine drives the large displacement high pressure plunger pump, and it is characterized by powerful dynamic and stable performance.

l Centralized control console is suitable for each manipulation and control of the drilling.

l Long-stroke hydraulic supporting leg can be used for transportation, loading and unloading of the drill automatically without the help of the lifting equipment.
