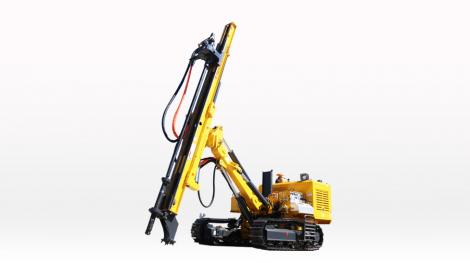

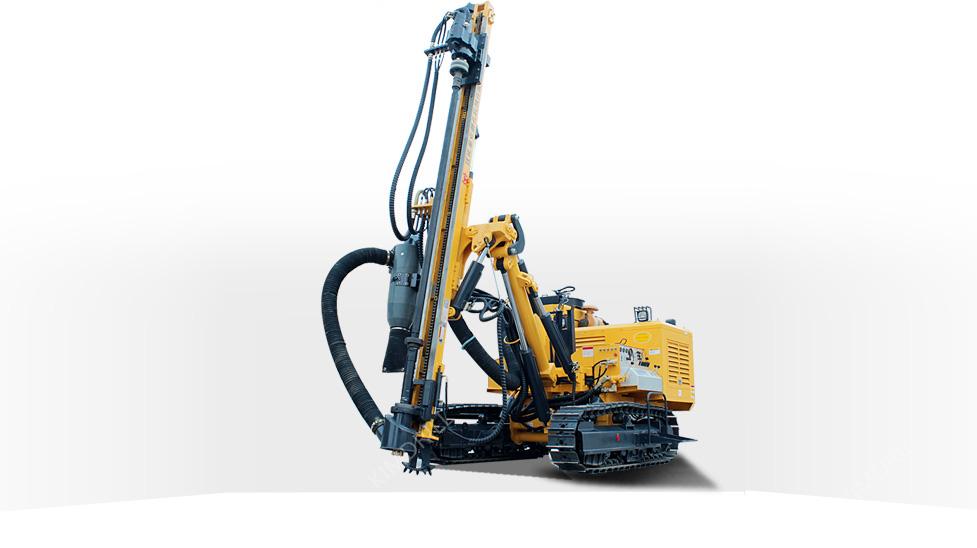

Name: | KD370 DTH Drill rig |
---|---|
Working pressure (Mpa): | 1.05-2.46 |
Drilling diameter (mm): | 90-165 |
Drilling height (m): | 3.38 |
Gradeability (°): | 30 |
One time propulsion (m): | 3 |
Rotation speed (rpm): | 0-76 |
Compensation length (mm): | 1200 |
Hook height (kw): | 570 |
Machine power (kw): | 70 /82 |
Machine weight (kg): | 6400 |
Dimension (mm): | 3150×2170×2300 |
Engine: | YC4D95Z-T11/4BTa3.9-C110 |
Fuel tank (L): | 125 |
KD370 DTH hydraulic drilling rig is equipped with new powerful hydraulic powered rotary head and propulsion system, robust chassis and reliable brake system, featuring simple operation, high safety, excellent power, and dust collection solutions.
It is developed with the aim to maximally reduce the boring cost while maintaining high performance
