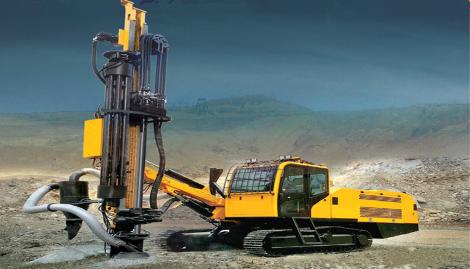

Name:KDJ810 DTH Drilling Rig
Working pressure (Mpa):1.05-2.46
Drilling diameter (mm):90-150
Drilling height (m):3.38
Gradeability (°):20
One time propulsion (m):3
Rotation speed (rpm):0-85
Dust collector:Hydraulic dust collecting
Engine type:Water-cooled six-cylinder EFI diesel engine
Machine power (kw/rpm):264/2100
Machine weight (kg):6400
Dimension (mm):3150×2170×2300
Engine:QSL8.9-C360-30
Fuel tank (L):450-500

Products Description

KDJ810 is the most cost-effective representation product as the solution to the integration of drilling rig and air compressor.

KDJ810 is an All-In-One DTH drilling rig which brings you more automation, higher working efficiency, better reliability and simpler operation. The FOPS-approved cabin and automatic pipe handling system come standard. Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety.

The hydraulic dust collector meets the requirement of environment protection and is a reliable solution to modern green mining.

Feature

l The water-cooled EFI turbo engine offers more power, consumes less fuel and complies with the National emission standard;

l The high-output Atlas Copco air compressor features two stages of compression, delivering pressure of 20bar and FAD of 18.5m3/min;

l The equipped double cycloid motors can output massive torque and reduce possibility of pipe-stuck situation;

l Automatic pipe handling system;

l Air-conditioned cabin with ROPS/FOPS;

l Efficient hydraulic dust collector is equipped with a sliding dust cover.
