Our production

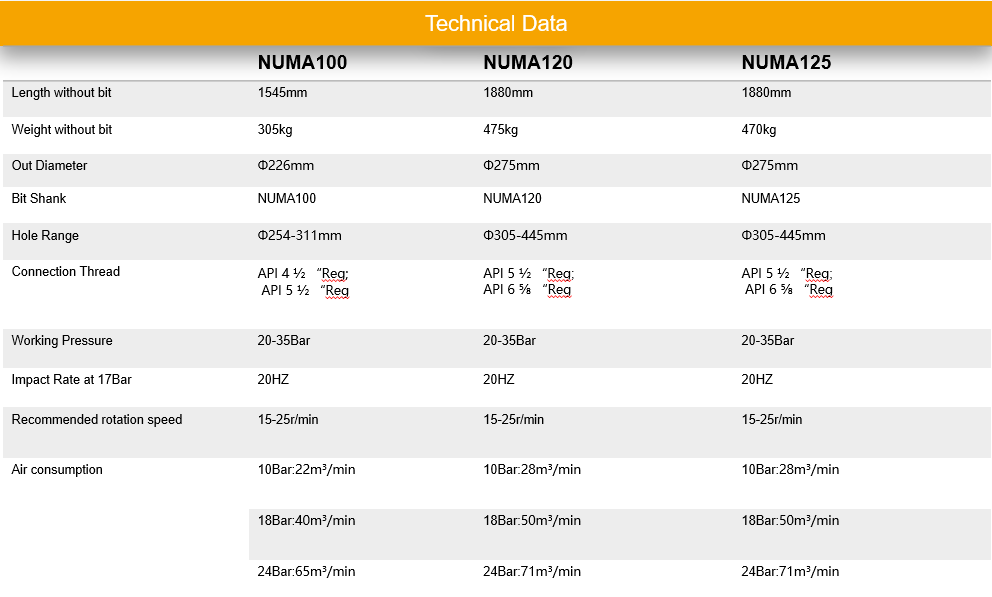

| Name: | NUMA HAMMER WITHOUT FOOT VALVE |
|---|---|
| Model: | NUMA100 |
| Length without bit: | 1545mm |
| Weight without bit: | 305kg |
| Out Diameter: | Φ226mm |
| Bit Shank: | NUMA100 |
| Hole Range: | Φ254-311mm |
| Connection Thread: | API 4 ½ “Reg; API 5 ½ “Reg |
| Working Pressure: | 20-35Bar |
| Impact Rate at 17Bar: | 20HZ |
| Recommended rotation speed: | 15-25r/min |
| Air consumption at 10Bar: | 22m³/min |
| Air consumption at 18Bar: | 40m³/min |
| Air consumption at 24Bar: | 65m³/min |
Products Description
Features:
1.Out of the trouble of foot valve fracture and expansion and contraction.
2.Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3.Simple structure, reliable parts, long life span, easy and cheap maintenance.
4.Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
