Our production
| Name: | KD300 Water well drilling rig |
|---|---|
| Max. drilling depth(m): | 300 |
| Drilling diameter (mm): | 115-314 |
| Working pressure (MPa): | 1.05-2.46 |
| Air consumption (m³/min): | 16-35 |
| Length of drill rod(m): | 3 |
| Max. lifting force (kg): | 17000 |
| Max. lifting speed (m/min): | 17.2 |
| Max. rotary torque (Nm): | 6000 |
| Rotation speed (r/min): | 0~105 |
| Power head stroke (m): | 3.7 |
| Max. swing angle of power head (°): | 80 |
| Max. driving force (Kg): | 7500 |
| Gradeability (°): | 23 |
Products Description

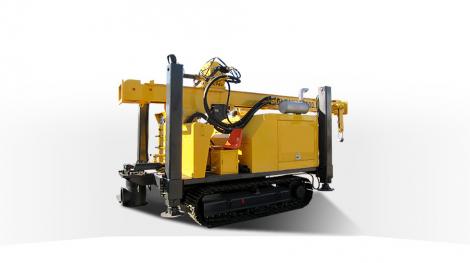

S300 water well drilling rig is a highly efficient multifunctional full hydraulic crawler drilling rig, applicable to rock water well, monitoring well, rescue well and other probe hole projects. It features reasonable structure, simple and convenient operation, energy-saving and high efficiency.
It uses a diesel engine to power the hydraulic system; and the lifting of sliding frame, dismantle, slewing and feeding of drill rod are all achieved by the hydraulic system. With a unique hydraulic winch system, it can achieve the lifting and lowering of drill rod and 180° lifting.
