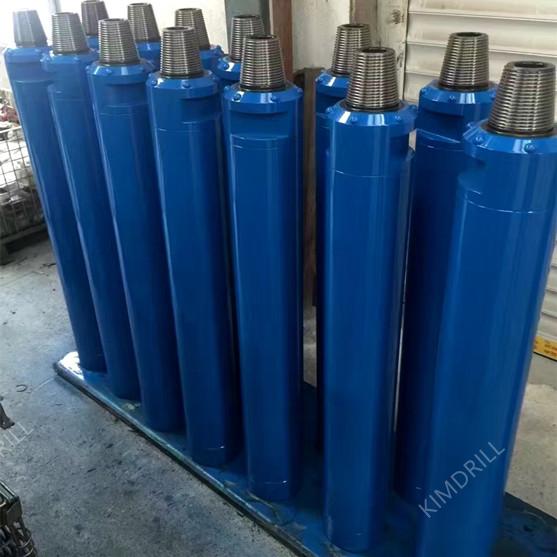

Name:	Mission Hammer
Model:	M4

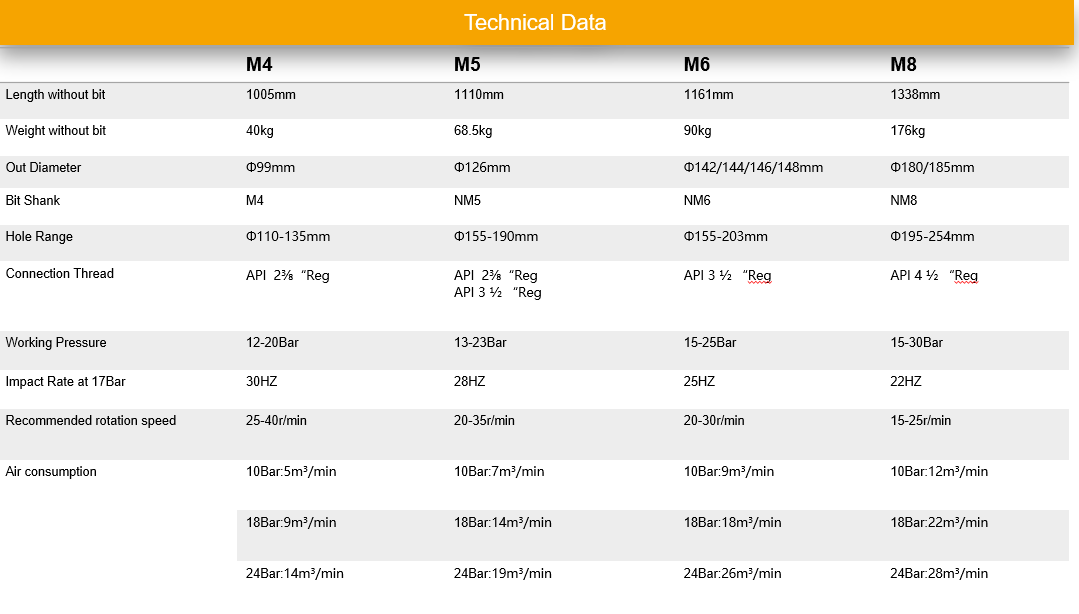

Length without bit:	1005mm
Weight without bit:	40KG
Out Diameter:	Φ99mm
Hole Range:	Φ110-135mm
Connection Thread:	API 2⅜“Reg
Working Pressure:	12-20Bar
Impact Rate at 17Bar:	30Bar
Recommended rotation speed:	25-40r/min
Air consumption at 10Bar:	5m³/min
Air consumption at 18Bar:	9m³/min
Air consumption at 24Bar:	14m³/min
